340 Gpa 95% Alumina Ceramics 3.6g/cm³ Insulator High Heat Resistant Al2O3 Custom Parts

Brand Name : HENGYUAN

Model Number : 95% Alumina Ceramics

Certification : CE,UL

Place of Origin : WUXI JIANGSU CHINA

MOQ : 100

Price : $1-$20

Payment Terms : L/C, T/T

Supply Ability : 5000 PCS/WEEK

Delivery Time : 20 DAYS

Packaging Details : Carton

Material : 95% Alumina Ceramics

Color : White

Weibull Modulus : 10M

Modulus of Elasticity : 340 Gpa

OEM，ODM : Acceptable

Orgin : WUXI JIANGSU CHINA

MOQ : 100 PCS

Package : Carton

Contact Now

340 Gpa 95% Alumina Ceramics 3.6g/cm³ Insulator High Heat Resistant Al2O3 Custom Parts
Product Attributes
Material 95% Alumina Ceramics
Color White
Weibull Modulus 10M
Modulus of Elasticity 340 Gpa
OEM，ODM Acceptable
Origin WUXI JIANGSU CHINA
MOQ 100 PCS
Package Carton
Product Description

Alumina Ceramic is widely used in various industries due to its excellent electrical insulation properties, high corrosion resistance, and exceptional wear resistance. With a maximum working temperature of 1600°C and outstanding thermal conductivity, it performs reliably in demanding industrial applications.

Material Unit A95% Alumina Ceramics A97% Alumina Ceramics A99% Alumina Ceramics A99.7% Alumina Ceramics
Density g/cm³ 3.6 3.72 3.85 3.85
Flexural Strength Mpa 290 300 350 350
Compressive Strength Mpa 3300 3400 3600 3600
Modulus of Elasticity Gpa 340 350 380 380
Impact Resistance MPam1/2 3.9 4 5 5
Weibull Modulus M 10 10 11 11
Vickers Hardness HV0.5 1800 1850 1900 1900
Thermal Expansion Coefficient 10-6K-1 5.0-8.3 5.0-8.3 5.4-8.3 5.4-8.3
Thermal Conductivity W/Mk 23 24 27 27
Thermal Shock Resistance △T℃ 250 250 270 270
Maximum Use Temperature ℃ 1600 1600 1650 1650
Volume Resistivity at 20℃ Ω ≥1014 ≥1014 ≥1014 ≥1014
Dielectric Strength KV/mm 20 20 25 25
Dielectric constant εr 10 10 10 10

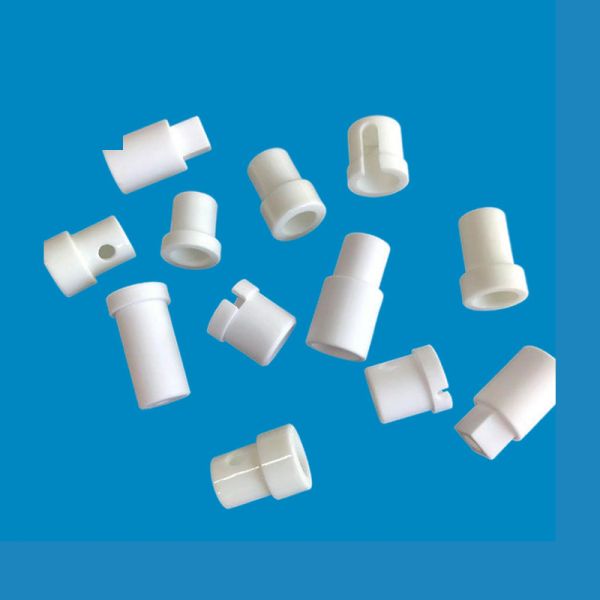

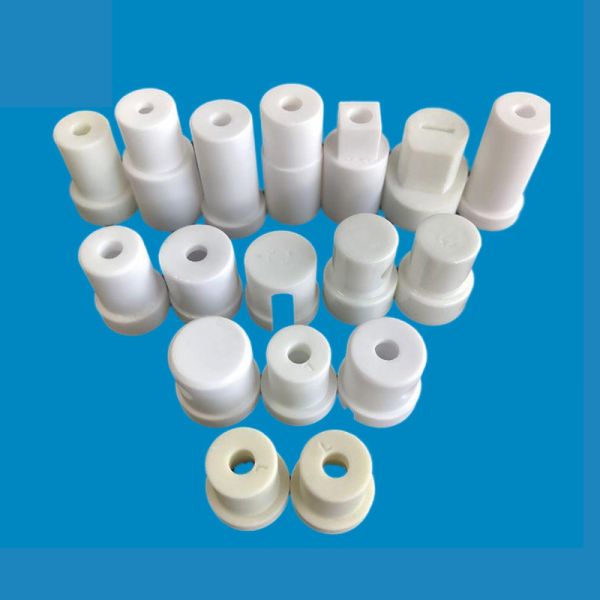

Product Images
