High Purity 96% Alumina Ceramic Components Producers For Crucible

Brand Name : HENGYUAN

Model Number : 99% Alumina Ceramics

Certification : CE,UL

Place of Origin : WUXI JIANGSU CHINA

MOQ : 100

Price : $1-$20

Supply Ability : 5000 PCS/WEEK

Delivery Time : 20 DAYS

Packaging Details : Carton

Material : 99% Alumina Ceramics

Color : White

Density : 3.85g/cm³

Type : Custom

OEM，ODM : Acceptable

Orgin : WUXI JIANGSU CHINA

MOQ : 100 PCS

Package : Carton

Contact Now

3.85g/cm³ 99% Alumina Ceramics Components for High Temperature Applications
Product Attributes
Attribute Value
Material 99% Alumina Ceramics
Color White
Density 3.85g/cm³
Type Custom
OEM, ODM Acceptable
Origin WUXI JIANGSU CHINA
MOQ 100 PCS
Package Carton
Product Description
Alumina ceramics is one of the most mature engineering ceramics with excellent properties. The ceramic material with 99% alumina content is used to make high temperature crucible, refractory furnace pipe and special wear-resistant materials, such as ceramic bearings, ceramic seals and water valves.
Material Properties Comparison
Material Unit A95% Alumina Ceramics A97% Alumina Ceramics A99% Alumina Ceramics A99.7% Alumina Ceramics
Density g/cm³ 3.6 3.72 3.85 3.85
Flexural Strength Mpa 290 300 350 350
Compressive Strength Mpa 3300 3400 3600 3600
Modulus of Elasticity Gpa 340 350 380 380
Impact Resistance MPam1/2 3.9 4 5 5
Weibull Modulus M 10 10 11 11
Vickers Hardness HV0.5 1800 1850 1900 1900
Thermal Expansion Coefficient 10-6K-1 5.0-8.3 5.0-8.3 5.4-8.3 5.4-8.3
Thermal Conductivity W/Mk 23 24 27 27
Thermal Shock Resistance △T℃ 250 250 270 270
Maximum Use Temperature ℃ 1600 1600 1650 1650
Volume Resistivity at 20℃ Ω ≥1014 ≥1014 ≥1014 ≥1014
Dielectric Strength KV/mm 20 20 25 25
Dielectric constant εr 10 10 10 10

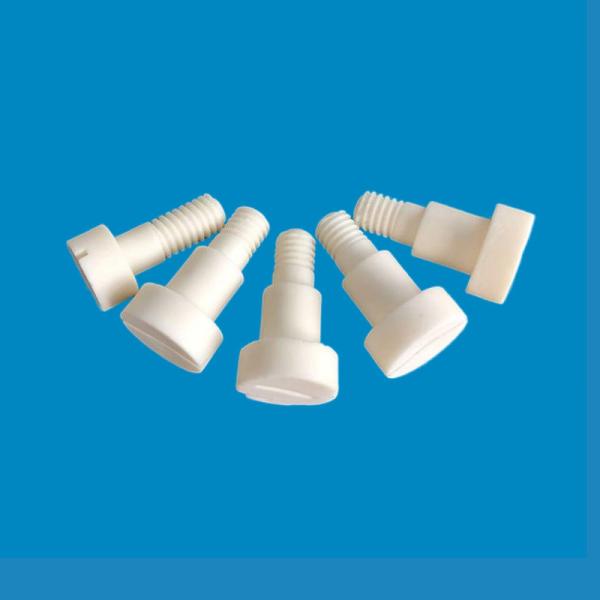

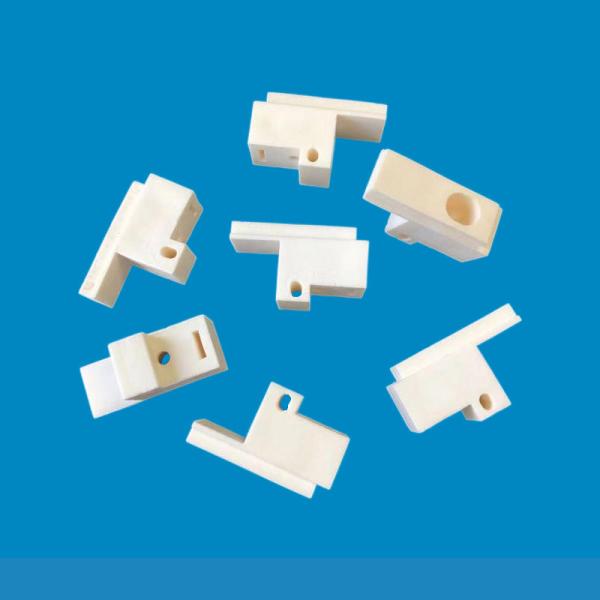

Product Images
