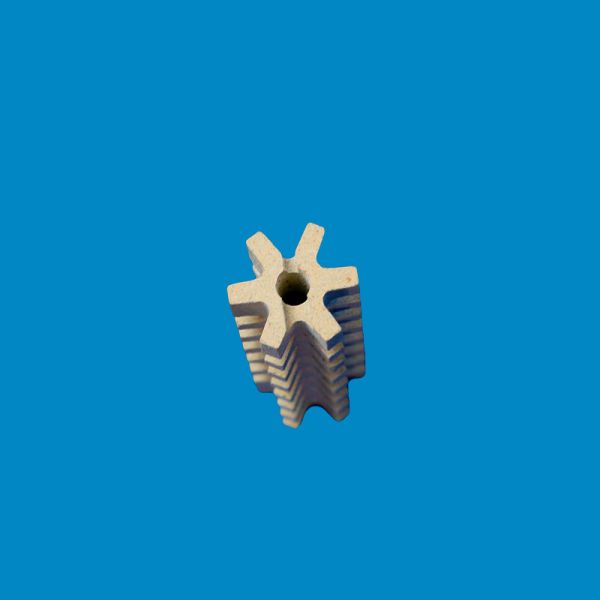

Refractory Mullite Cordierite Ceramic Ring Yellow White High hardness

Brand Name : HENGYUAN

Model Number : Cordierite Ceramics

Certification : CE,UL

Place of Origin : WUXI JIANGSU CHINA

MOQ : 100

Price : $1-$20

Payment Terms : Negotiable

Supply Ability : 5000 PCS/WEEK

Delivery Time : 20 DAYS

Packaging Details : Carton

Material : Cordierite Ceramics

Color : Yellow Or White

Bulk Density : 2.6gm/cc

Hardness : 800 HV

OEM，ODM : Acceptable

Orgin : WUXI JIANGSU CHINA

MOQ : 100 PCS

Package : Carton

Contact Now

Refractory Cordierite Ceramics High Temperature Resistant High Insulation Mullite Ceramic Ring
Product Attributes
Attribute Value
Material Cordierite Ceramics
Color Yellow Or White
Bulk Density 2.6gm/cc
Hardness 800 HV
OEM,ODM Acceptable
Origin WUXI JIANGSU CHINA
MOQ 100 PCS
Package Carton
Product Description

Cordierite ceramic is one of the most popular ceramics for its properties of excellent thermal stability, high refractoriness, good chemical durability, low dielectric constant, and low thermal expansion.

Features & Advantages
High hardness - Provides excellent durability and wear resistance
High heat resistance - Excellent thermal stability makes it ideal for high-temperature applications
Good wear resistance - Ideal for industrial wear parts
High electrical resistivity - Excellent insulating properties
High corrosion resistance - Resistant to water and most chemical solutions
Technical Specifications
Item Test Condition Unit & Symbol Cordierite Ceramics
The main chemical ingredient MgO, Al2O3, SiO2
Bulk Density gm/cc 2.6
Maximum Use Temperature 1400℃
Hardness HV 800
Bending Strength 20℃ Kgf/cm2 900
Compressive Strength 20℃ Kgf/cm2 3500
Thermal expansion 1X 10-6/℃ ≤2.0
Thermal conductivity 25℃-30℃ W/m.k 1.3
Thermal Shock Resistance Tc ℃ 250
Dielectricity constant 1MHz.25℃ 6
Dielectric strength ac-kV/mm (ac V/mil) 10
Volume Resistivity 20℃ ohm-cm > 1012
